Technical Specification
Speed: 100 - 400 RPM
Capacity: 400, 448, 480, 672, 800, 960, 1028, 1280, 1344, 1536, 2048, 2688 hooks
Max Shedding :75 to 110 mm
Lift: Double (Electronic jacquard), Single (Handloom Jacquard)
Weft Selection: Synchronized with Jacquard by electronic / Mechanical System
Adapt With: Hand Loom, Power Loom, Rapier Looms, Projectile Looms etc...
Design Upload : By USB Support with BMP format Design
Drive : Chain Drive for Hand Loom, Power Looms Cardan and shaft for Rapier, Projectile Looms
Maintanence: Low
Double Shaft Type
Read width(MM): 1500-2000 / 2200-2300 / 3300-3600
Machine Speed (RPM): 220 / 200 / 150
Weft Density Range : 4-47 Pixel / CM
Shedding Device : Dobby/Jacquard
Rolling Sheet diameter : 600 mm
Motor Power : 1.5 Kw
Color Selection : 4-6 Colors
Machine Weight : 1600 Kg
Maximum roller diameter : 300 mm

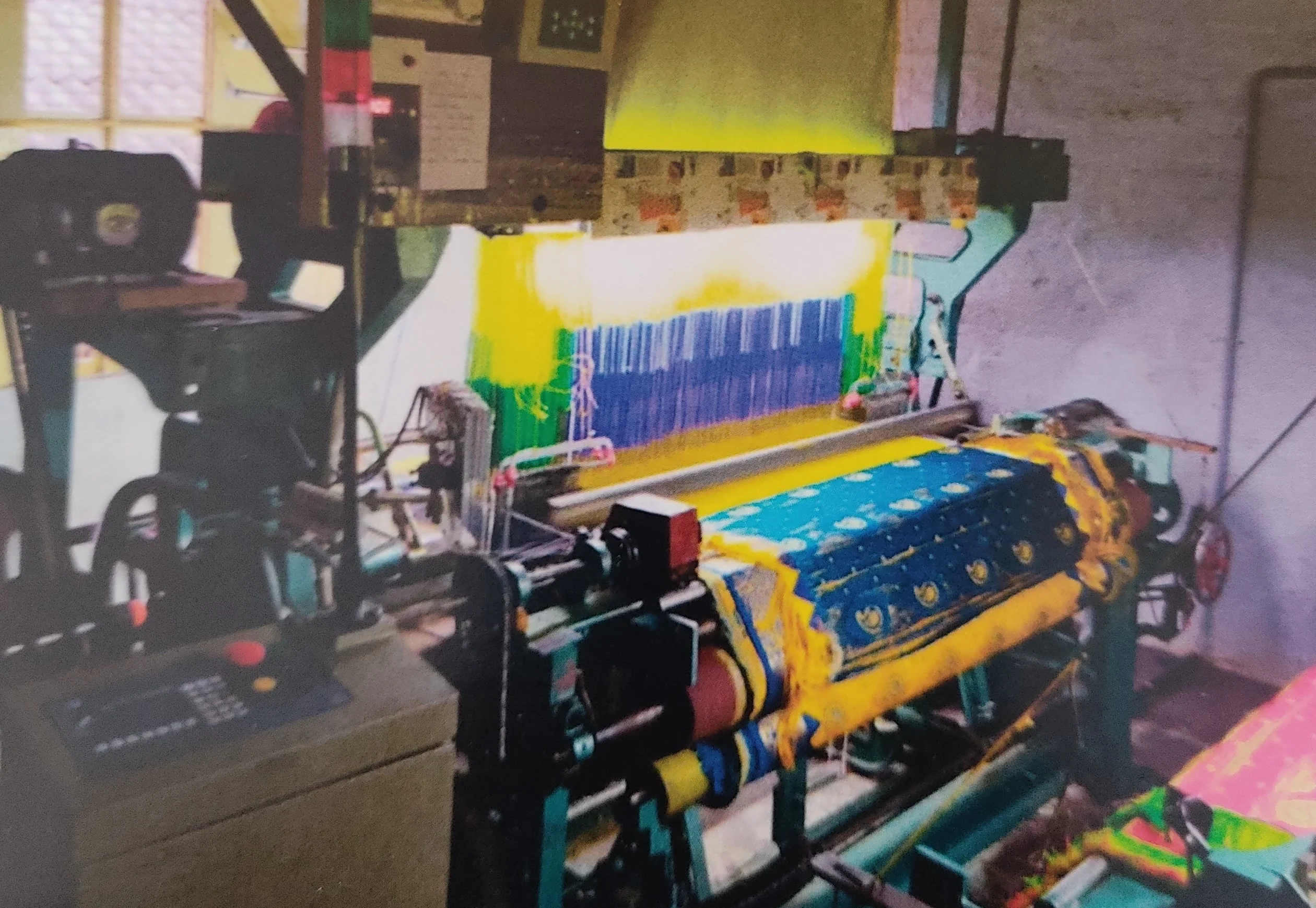

Saree Weaving machine with electronic jacquard
Read width(MM): 1500-2000 / 2200-2300 / 3300-3600
Machine Speed (RPM): 220 / 200 / 150
Weft Density Range : 4-47 Pixel / CM
Shedding Device : Dobby/Jacquard
Rolling Sheet diameter : 600 mm
Motor Power : 1.5 Kw
Color Selection : 4-6 Colors
Machine Weight : 1800 Kg
Selevedge : Electronic Fusing Selvedge
